USB 2.0 <=> RS232 High Isolated Industrie Konverter Modul (Prod. Nr. #232)

Merkmale:
Extrem EMV unempfindlich !
Extrem robust ! Für Industrie designt !
Außenabmessungen (mm) 90 x H 75 x B 23     Bis 1 Mbps schnell   !
Alle 8 Signalleitungenvon von RS232 vollisoliert!
Geringe Stromverbrauch ! High-Speed Digital Isolator (keine Optokoppler) !
Für Hutschienen Montage!

RS232 V.24:
Feature MegaBaud™ operation
Guaranteeing 1Mbps for highspeed applications
Guaranteed Data Rate 1 Mbps
Guaranteed Slew Rate 24V/µs
Meets EIA/TIA-232 Specifications Down to 3.0V
Ready-to-Transmit Logic-Level Output
±15 kV ESD Protection

USB2.0 ESD Schutz:
2 data lines protection, Protects VBUS
Enhanced ESD protection: IEC61000-4-2 level 4:
15kV (air discharge)
8kV (contact discharge)
ESD protection of VBUS
Fast response time
Consistant D+/D- signal balance
Best capacitance matching tolerance I/O to GND of 0.04pF
Compliance with USB2.0 requirement (<1pF)

Galvanischer Trennung:
High common-mode transient immunity: >25 kV/µs
Safety and regulatory approvals
UL recognition: 5000 V rms for 1 minute per UL 1577
CSA Component Acceptance Notice #5A
IEC 60950-1: 600 V rms (reinforced)
IEC 60601-1: 250 V rms (reinforced)
VDE certificate of conformity
DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
VIORM = 846 V peak

Referenzen:
Schweißroboter Produktionsstraßen
Mobilfunk Anlagen
Mit einem Feritt auf der Zuleitung - 99,9 % Sicherheit gegen USB-Absturz

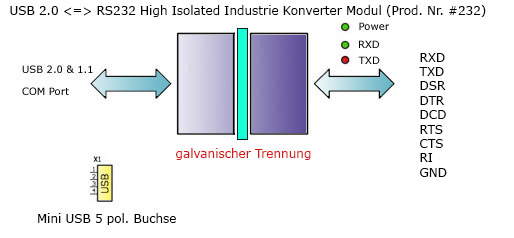

Blockschaltbild



Konverter Bilder




Technische Daten

Produkt: USB2.0 <=> RS232 Konverter Modul für Hutschienenmontage #232
Driver: Driver Installation Anleitung - kurz
Driver Installation Anleitung - lang
Installation: Plug & Play
USB-Interface: virtueller COM-Port
Anschluss 1: USB2.0 (1.1)
Anschluss 1 Belegung: Pin 1 - Vcc
Pin 2 - D-
Pin 3 - D+
Pin 4 - GND
Anschluss 1
ESD Schutz:
2 data lines protection, Protects VBUS
Enhanced ESD protection: IEC61000-4-2 level 4:
15kV (air discharge)
8kV (contact discharge)
ESD protection of VBUS
Fast response time
Consistant D+/D- signal balance
Best capacitance matching tolerance I/O to GND of 0.04pF
Compliance with USB2.0 requirement (<1pF)
Anschluss 2: RS232 - 9 x Klemmen
Anschluss 2 Belegung: Klemme A - DSR
Klemme B - RI
Klemme C - GND

Klemme G - RXD
Klemme H - DCD
Klemme J - CTS

Klemme K - TXD
Klemme L - RTS
Klemme M - DTR
Anschluss 2: RS232 V.24:
Feature MegaBaud™ operation
Guaranteeing 1Mbps for highspeed applications
Guaranteed Data Rate 1 Mbps
Guaranteed Slew Rate 24V/µs
Meets EIA/TIA-232 Specifications Down to 3.0V
Ready-to-Transmit Logic-Level Output
±15 kV ESD Protection
Galvanischer Trennung: High common-mode transient immunity: >25 kV/µs
Safety and regulatory approvals
UL recognition: 5000 V rms for 1 minute per UL 1577
CSA Component Acceptance Notice #5A
IEC 60950-1: 600 V rms (reinforced)
IEC 60601-1: 250 V rms (reinforced)
VDE certificate of conformity
DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
VIORM = 846 V peak
Spannungsversorgung: +5V über USB ca. 120 mA (max. 220 mA)
Übertragungsraten: 183, 300, 1200, 2400, 4800, 9600, 19200, 38400, 57600,
11520, 230400, 460800, 921600 bis 3 Mbps vollständige Liste aller möglichen Baudraten im PDF Format
Zustandsanzeigen: TXD - LED rot
RXD - LED grün
Power - LDE grün
Betriebstemperatur: -20..+80°C
Treiber Software: Windows 8
Windows 7
Windows Vista x64
Windows XP x64
Windows Server 2003 x64
Windows Vista
Windows XP
Windows Server 2003
Windows 2000
Windows ME
Windows 98
Linux
Mac OS X
Mac OS 9
Mac OS 8
Windows CE.NET (Version 4.2 and greater)


Kurzbeschreibung

Sie benötigen eine weitere RS232-Schnittstelle ?

Nach USB Spezifikation 2.0 & 1.1
Unterstützt automatisch "handshake mode"
Bis 1 Mb/s "data transfer rate"
Unterstützt "Remote wake-up" und power management
Einfachste Installation
Arbeitet z.B. zusammen mit Mobilfunktelefonen, Organizern, Digital Kameras, Modems
und ISDN Terminal Adaptern
Macht Ihre eingebaute RS-232-Schnittstelle frei für andere Anwendungen
Kein IRQ erforderlich! Betrieb von mehreren Konvertern an einem PC möglich

Dieses kleine Modul konvertiert den USB-Anschluss nach RS232 (COM-Port).
Dabei werden die typischen Baudraten von 183 bps bis 921600 bps unterstützt.
Das Modul ist voll Plug und Play-fähig. Entsprechende Treiber zur Einbindung
sind dem Produkt beigefügt.

Ideal für Service mit Laptop ohne RS232 Schnittstelle.


COM Port Informationen

Sie benötigen eine (zusätzliche) serielle RS232 Schnittstelle an Ihrem PC oder Laptop ?

1. Schließen Sie das "USB - RS232 Kabel" an die USB-Schnittstelle an.
2. Die Treiber Installation startet jetzt automatisch.
3. Treiber installieren, fertig.

Ab jetzt, immer wenn das "USB - RS232 Kabel" mit dem Rechner verbunden ist,
wird eine weitere serielle COM Schnittstelle zur Verfügung gestellt.



RS232 Informationen

Max. Kabellängen bis 15 m, Übertragungsraten bis 20 kbps.
1:1 System (ein Treiber, ein Empfänger).

Heutige IC's garantieren Baudraten bis zu 1.000.000 bps. In der Praxis sind, abhängig von der Baudrate,
Kabellängen bis zu 150 m machbar (2400 bps ohne Probleme).
Das Kabel muss kapazitätsarm sein, eine gute Abschirmung und verdrillte Adernpaare haben.
Die Signalleitungen werden mit Ihren Rückleitungen verdrillt. Der Schirm sollte an beiden
Seiten an dem Gehäuse angeschlossen sein und nicht der Rückleiter sein.
